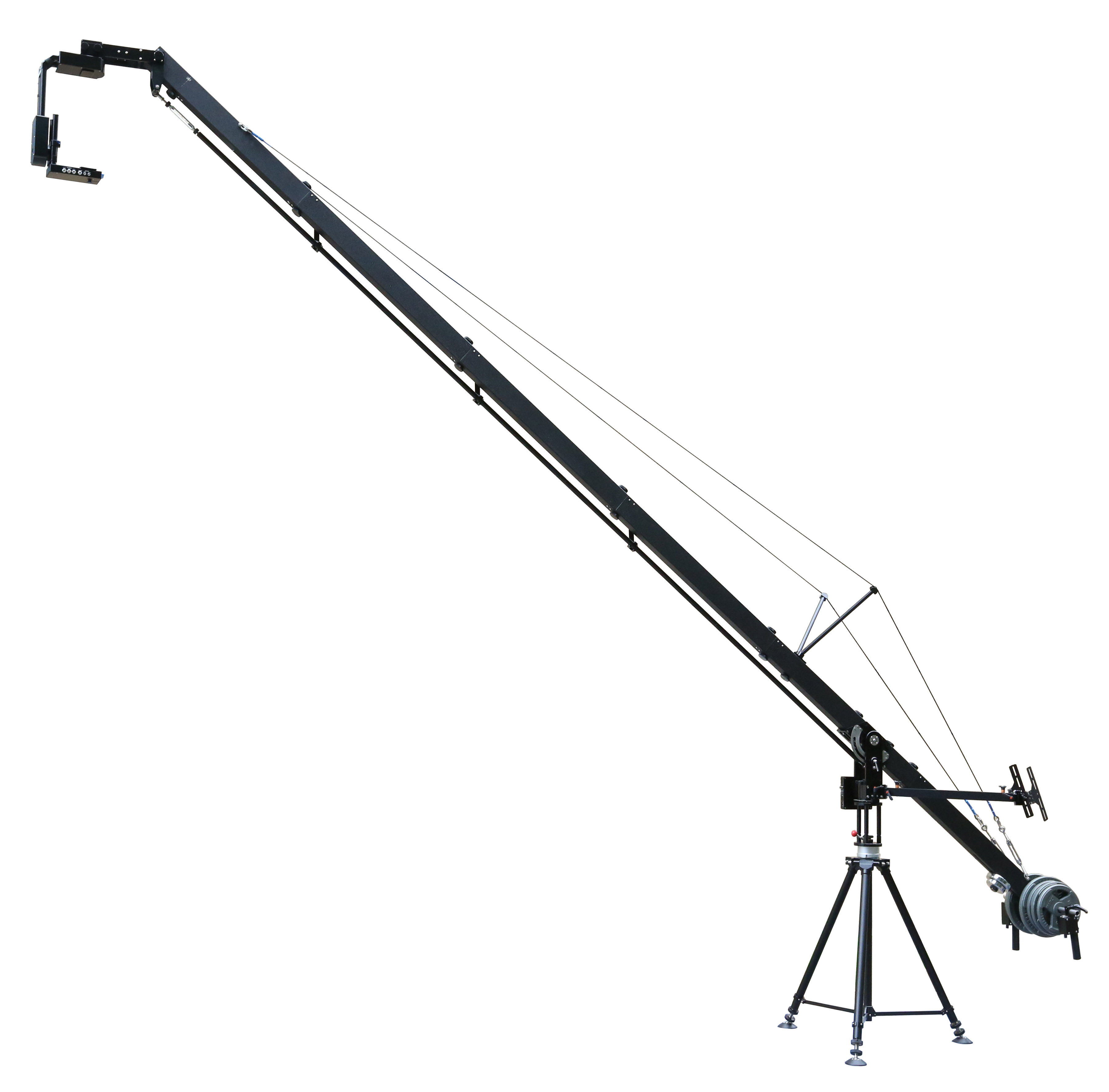

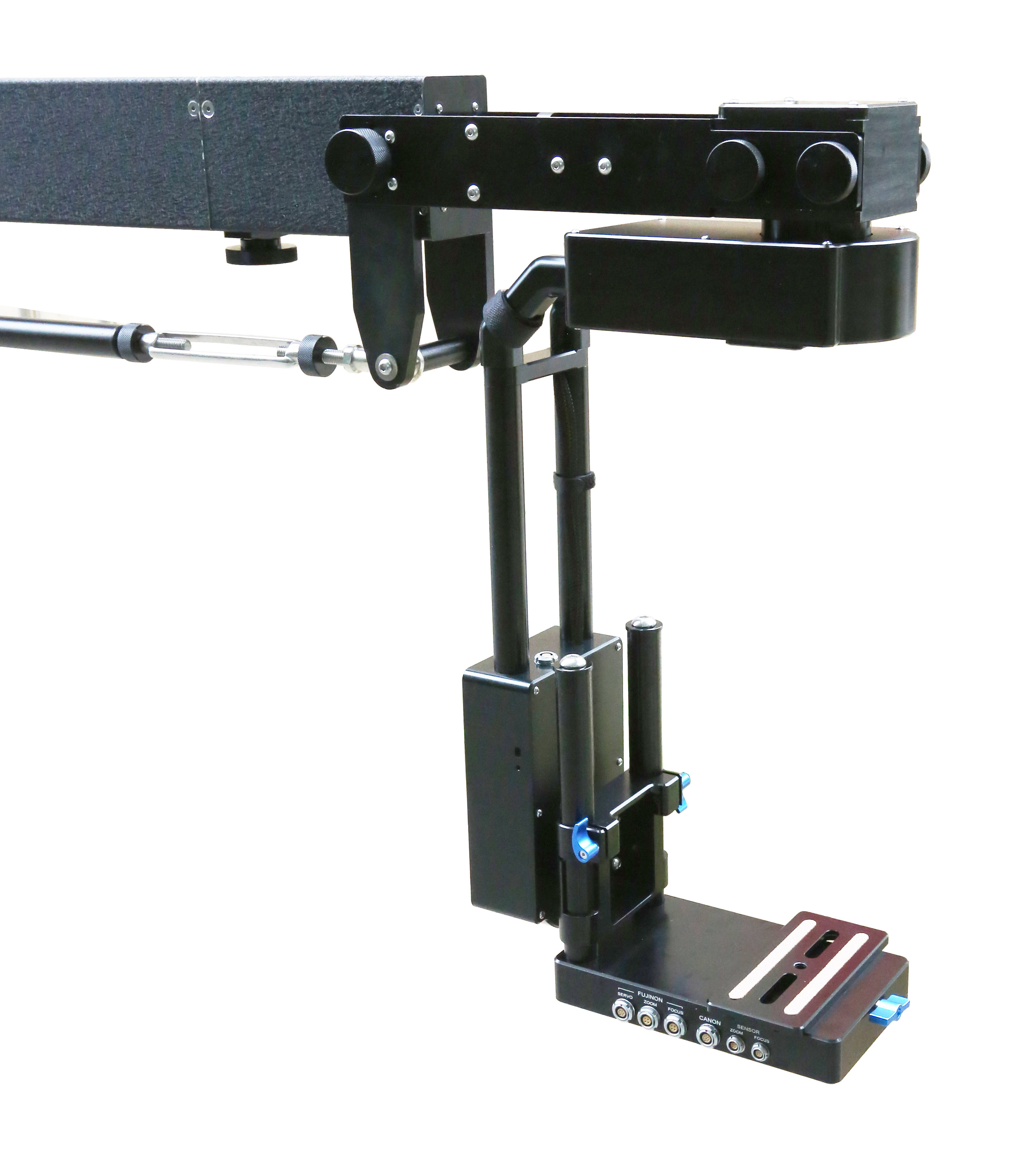

The TJ10 virtual tracking jib, in particular, is an remote head jib designed specifically for virtual shooting needs. It is equipped with industrial-grade high-precision angle sensors on the horizontal and tilt axes of the jib. The head is driven by high-quality DC servo motors and employs a redundant design to enhance stability during movement. It also features a lens control and data acquisition system that can control and collect data from broadcast servo and semi-servo lenses. The jib uses high-precision levels similar to those found in optical measuring instruments to ensure accurate tracking data throughout its entire range of movement. The TJ10 virtual tracking jib is not only used in virtual green screen shooting scenarios but is also particularly suitable for applications such as AR (augmented reality) and XR (extended reality with LED screens), where high tracking data accuracy is essential.

Additionally, the TJ10 virtual tracking jib is user-friendly in terms of setup and initial virtual tracking data parameter configuration. Each tripod leg is equipped with a screw adjustment device to ensure efficient high-precision setup in a short time. To facilitate quick and easy initial virtual parameter settings, the system uses a combination of software and hardware, providing real-time parameter adjustment in the virtual scene to achieve a "what you see is what you get" effect.
